YC98S1 Portable Standard Electrical Meter Calibration Accuracy And Precision

Name: YC98S1 Portable Standard Electrical Meter Calibration Accuracy And Precision
Brand: GENY
Price: 1 USD

Certification : ISO, CE

Supply Ability : 300/Year

Payment Terms : L/C, T/T, D/P

Brand Name : GENY

Model Number : YC98S1

Place of Origin : CHINA

Model NO. : YC98S1

Display : Digital

Installation : Direct Connected

Usage : Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment : Three-phase Three-wire

Theory : Electronic Meter

Power Meter Connection : Terminal

Measured Signal : Continuous Wave

Type : Energy Meter

Customized : Customized

Trademark : GENY

Transport Package : Carton

Origin : China

HS Code : 9030849000

Port : Guangzhou, China

Contact Now

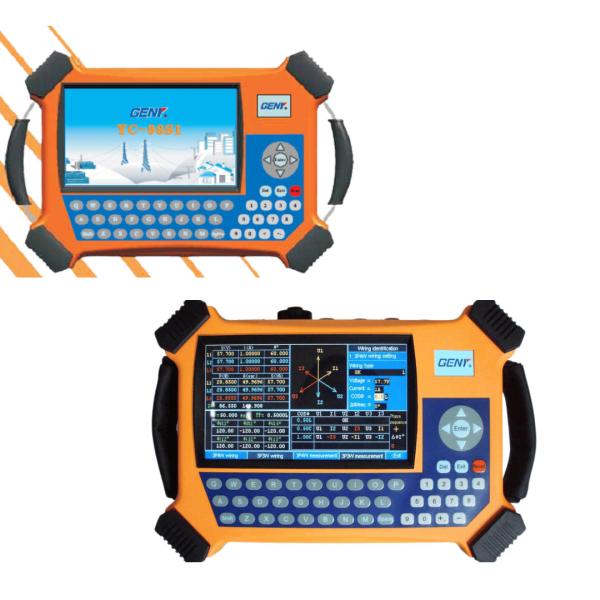

Digital Display Yc98s1 Portable Standard Meter Customized for Accuracy and Precision

Features & Functions

0.05% High accuracy(direct connection)
With 7 inch 480x234 dot TFT color screen
Wide voltage supply range:55V~480V
Connection with current clamp: standard 100A.
From 5A to 2000A current as option.
Two ways for power supply: external AC power supply or test lead power supply

Product Parameters

Application Conditlons and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25°C-+45°C	40%--95%	<2500m	IP30	CE conform

Type	YC-98S1
Test voltage
Range	30V-480V
Error	±0.05%
Harmonic	2nd-51st
Test current
Range(direct connection)	0.05-10A
Range(clamp CT)	100A
	5A,500A,1000A,2000A
	(option)
Error(direct connection)	±0.05%
Error(clamp CT)	±0.2%(5A,100A)
Error(clamp CT)	±0.5%(other)
Harmonic	2nd-51st
Power measure error
Active power(direct connection)	±0.05%
Active power(clamp CT)	±0.2%(5A,100A) ±0.5%(other)
Reactive power(direct)	±0.1%
Reactive power(clamp CT)	±0.2%(5A,100A)
Reactive power(clamp CT)	±0.5%(other)
Energy measure error
Active energy(direct)	±0.05%
Active energy(clamp CT)	±0.2%(5A,100A)
Active energy(clamp CT)	±0.5%(other)
Reactive energy(direct)	±0.1%
Reactive energy(clamp CT)	±0.2%(5A,100A)
Reactive energy(clamp CT)	±0.5%(other)
Phase angle
Range	0°-360°
Error	±0.05°
Frequency
Range	45Hz-65Hz
Pulse output
High frequency output(CH)	--
Low frequency	3600imp/kWh
Pulse ratioPulse ratio	1:01
Output level	5V
Pulse input
Input channel	2
Input level	5-10V
Input frequency	Max.100Hz
Display
Resolution	7"TFT color
Function
Vector diagram	√
Waveform	√
Energy accumulation	√
CT ratio test	√
Local parameter input	√
Wiring emulation	√
Self-calibration	√
Recorder check	√
Data storage	√
Data storage qty	5000
External extend	√
Screen printing	√
Communication port	USB/RS232
Communication with	√
Upload data	√
External mini printer	√
External keyboard	√
Other
Voltage Supply way	External power
Voltage Supply way	test lead power
Voltage Supply	55-480V,50/60Hz
Dimensions(WxHxD)	245x168x67
Weight(kg)	1.5kg
Certifications

Our Advantages

We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
We have a consummate marketing network and we offer a competitive price.
Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.
